ANGLE VALVES-S6002

Short Description:

Working pressure:10MPa

Working temperature: -20℃≤t≤110℃

Working Medium:Water


Product Detail

Product Tags

BALL VALVES-S5015

Structure Ball Valve Function Atmospheric Valve
Temperature Normal Temperature Standard ISO9001
Trademark SY Transport Package Standard Export Package
Specification CE Certification Origin Yuhuan,Zhejiang,China
HS Code 8481804090

Taizhou Shangyi Valve Co. Ltd. was established in 1998, which located in “the city of valves in China”- Yuhuan.
Our products including all kinds of high-grade brass valves, such as ball valve, check valve, filter valve, radiator valve, foot valve, angle valve, bibcock. as well as heating instruments ect. which export to many market, such as Europe, South America, Africa, Middle East ect.

pd1

MARKET

Our valve export S80 million. Our sales service networks have been established in more than 60 countries and regions in the global market

AUTOMATION

70% of the capacity manufactu-red by automation. we achieve the target of 12 million pcs output EUROPE monthly

CERTIFICATION

Company-cnas Is09001 Is018001 Usa-upc Ab1953 Nsf Sa Ul Fm - Ce Acs Dvgw Wras En215 Inig Australia- Watermark Aga

R&D TEAM

We have a r&d team of over 30 people. If you have a sample, the research and development time is a week

PROJECTS

We have the stable supply cap-acity, the annual output value exceeds 100 million.

SUPPLY ABILIT Y

We are suppliers of many large projects,such as the London 2012 Olympics

DN15 - DN100 Pressure PN25 Cw617n or HPB59-3 Brass Ball Valve

Used for gas appliance hook-up and other gas supply line applications. Easy appliance hook-up Fip X Fip connections 5bar max pressure AGA, WATERMARK, INIG, DVGW, EN331 standard Iron handle painted yellow standard

pd1pd1

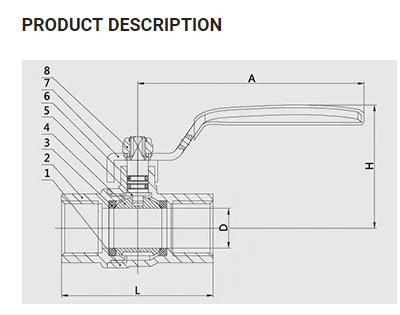

Dimensions

Spec D A H L
1/4" 10 84 44 46
3/8" 12 84 45 56
1/2" 15 84 47 58
3/4" 20 84 51 67
1" 25 112 70 81
11/4" 32 135 83 103
11/2" 40 135 83 103
2" 50 157 97 126
21/2" 64 236 131 152
3" 75 236 138 170
4" 97 236 155 206



Item:   Ball Valve
Size:   1/2"
Brass material:   59-3
Connection Type:   Female BSP x Female BSP
Handle Material:   IRON / AL
Handle Type:   Lever
Stem Type:   Blowout Proof
Stem Material:   Brass
Seat Material:   PTFE
Body Seal Material:   PTFE
Ball Material:   Chrome Plated Brass
Valve Basic Body Material:   Brass
Surface Treatment:   Nickel Plating
Application:   Can be used for oil & petroleum, and water
Max. Temp:   20°C to+120°C
Working Pressure:   30bar/435psi
Port:   All
Features:    Thread Standard Diameter
Standards:   EN13828 CE ACS(1101)

Close-up
