BALL VALVES-S2016

Short Description:

Working pressure:1.6MPa

Working temperature: -20℃≤t≤110℃

Working Medium:Water


  • BALL VALVES-S2016

Product Detail

Product Tags

Brass Filter Ball Valve is made of forged brass, with function of adjust flow rate, designed to filter the impurities in fluid control system, the fluid flows in one direction and filter by s/s filter screen of the valve.

Product information :

Product name BALL VALVES
Sizes 1"1/2"3/4"
Bore Full bore
Application Water and other non-corrosive liquid
Working pressure PN16
Working temperature -10 to 110°C
Quality standard EN13828, EN228-1/ ISO5208
End Connection BSP
Features: Heavy-duty design for higher pressure
Anti-blow-out stem structure/O-Ring or Pressure Nut
100% leakage test on valve before delivery
Agents wanted and OEM  acceptable
Packing Inner boxes in cartons, loaded in pallets
Customized design acceptable

Bore sizes for brass ball valves:

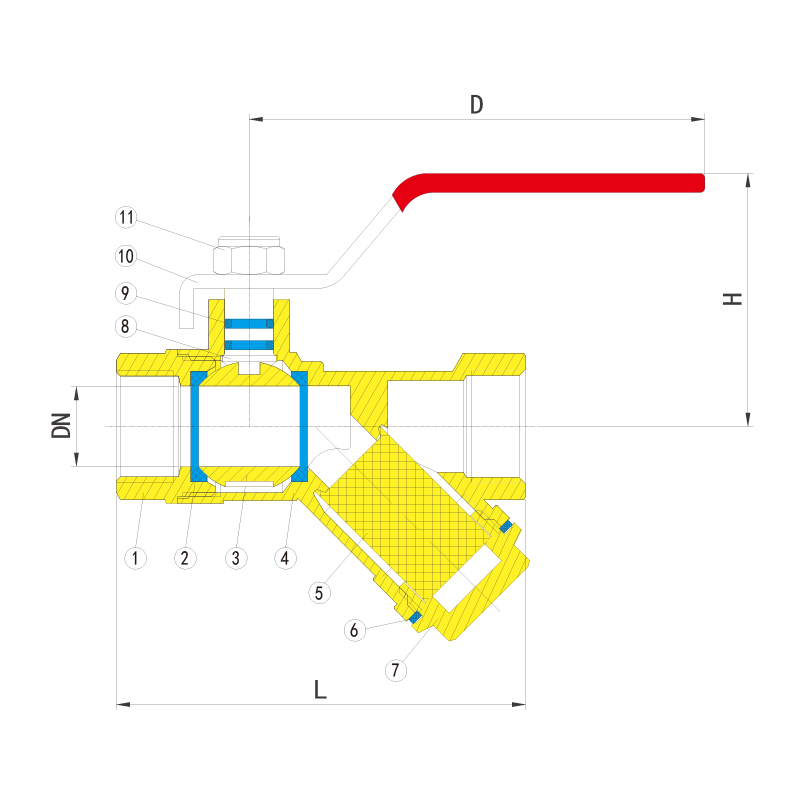

NO Component Material
1 Bonnet Brass
2 Seat PTFE
3 Ball Brass
4 Body Brass
5 Fillter Stainless steel
6 Gasket PTFE
7 Plug Brass
8 Stem Brass
9 O-ring NBR
10 Handle ALL
11 Nut Steel

Bore sizes for brass ball valves:

SIZE L H DN D Weight Carton
1/2" 75.8 51 14.8 9A9 265 72
3/4" 90.6 53 19 99 370 54
1" 103 64 24 122 608 36
11/4" 133.5 75 30 144 1080 16

Production flow of Brass Ball Valves :

S2016-01

Production Process

Brass material Chemical composition used for brass ball valves:

59534d14e21a7864798331 (1)

Available surface treatments of brass ball valves:

Craft color

Packing of brass ball valves:

Pack and ship

Testing Lab for brass ball valves:

Testing Machine

Why choose SHANGYI as your China valves supplier:

1.rofessional valve manufacturer,with over 20 years of industry experiences.
2.Monthly production capacity of 1million sets,enables quick delivery
3.Testing each valve one by one
4.Intensive QC and on-time delivery,to make quality reliable and stable
5.Prompt responsive communications,from pre-sales to after-sales
