BALL VALVES-S5081

Short Description:

Working pressure:1.6MPa

Working temperature: -20℃≤t≤110℃

Working Medium:Water


Product Detail

Product Tags

Key words: Brass Ball Valves, Forged Brass Ball Valves, Nickel-plated Brass Ball Valves, Brass Valves, Ball Valves, Valves

Product information :

Product name BALL VALVES
Sizes 1"1/2"3/4"
Bore Full bore
Application Water and other non-corrosive liquid
Working pressure PN16
Working temperature -10 to 110°C
Quality standard EN13828, EN228-1/ ISO5208
End Connection BSP
Features: Heavy-duty design for higher pressure
Anti-blow-out stem structure/O-Ring or Pressure Nut
100% leakage test on valve before delivery
Agents wanted and OEM  acceptable
Packing Inner boxes in cartons, loaded in pallets
Customized design acceptable

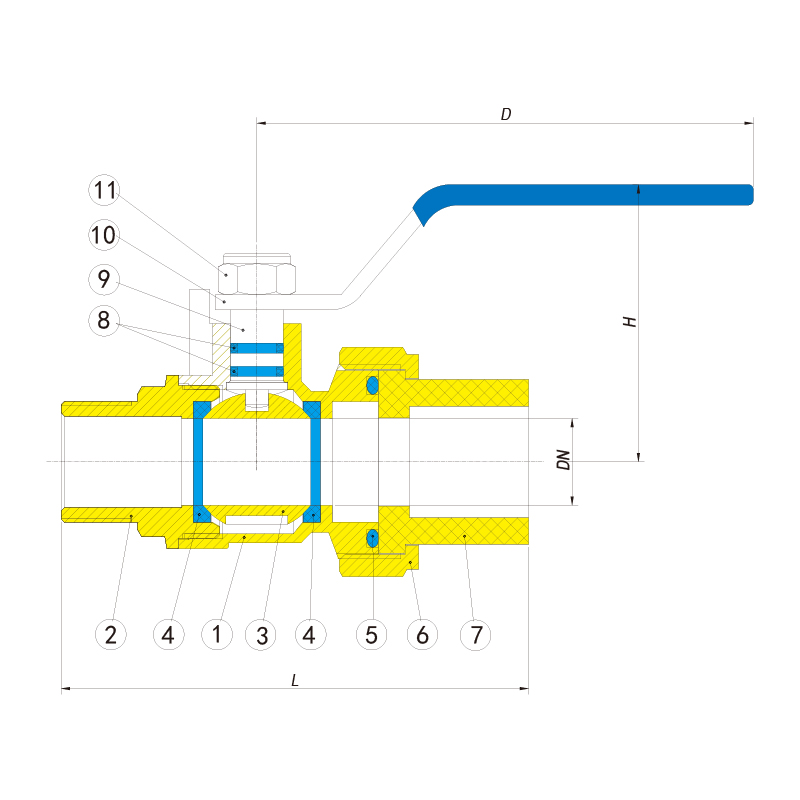

Bore sizes for brass ball valves:

NO Component Material
1 Body Brass
2 Bonnet Brass
3 Ball Brass
4 Seat PTFE
5 O-ring EPDM
6 NUTS Brass
7 Hot melt PPR
8 O-ring NBR
9 Stem Brass
10 Handle Steel
11 Nut Steel

Bore sizes for brass ball valves:

SIZE L H DN D Weight Carton
1/2"x20 75 45 14.8 98 242 96
3/4"x25 86 46 19 98 325 60
1"x32 87 50 24 122 495 36
11/4"x40 111 68.5 37 137 820 24

Production flow of Brass Ball Valves :

59534d14e21a7864798331 (1)

S5081-01

Brass material Chemical composition used for brass ball valves:

59534d14e21a7864798331 (1)

Available surface treatments of brass ball valves:

59534d14e21a7864798331 (1)

Packing of brass ball valves:

59534d14e21a7864798331 (1)

Testing Lab for brass ball valves:

59534d14e21a7864798331 (1)

Why choose SHANGYI as your China valves supplier:

1.rofessional valve manufacturer,with over 20 years of industry experiences.
2.Monthly production capacity of 1million sets,enables quick delivery
3.Testing each valve one by one
4.Intensive QC and on-time delivery,to make quality reliable and stable
5.Prompt responsive communications,from pre-sales to after-sales
