BALL VALVES-S5701

Short Description:

Working pressure:3.0MPa

Working temperature: -20℃≤t≤110℃

Working Medium:Water


  • BALL VALVES-S5701

Product Detail

Product Tags

Key words: Brass Ball Valves, Forged Brass Ball Valves, Nickel-plated Brass Ball Valves, Brass Valves, Ball Valves, Valves

Product information :

Product name BALL VALVES
Sizes 2"1"1/2"3/4"
Bore Full bore
Application Water and other non-corrosive liquid
Working pressure PN30
Working temperature -10 to 110°C
Quality standard EN13828, EN228-1/ ISO5208
End Connection BSP
Features: Heavy-duty design for higher pressure
Anti-blow-out stem structure/O-Ring or Pressure Nut
100% leakage test on valve before delivery
Agents wanted and OEM  acceptable
Packing Inner boxes in cartons, loaded in pallets
Customized design acceptable

Bore sizes for brass ball valves:

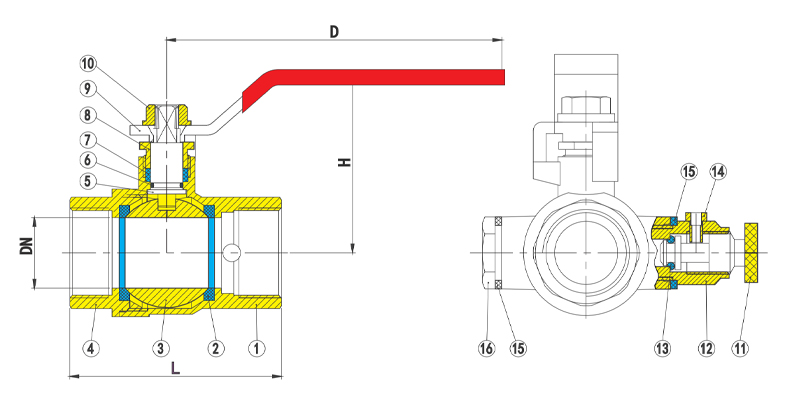

NO Component Material
1 Body Brass
2 Seat PTFE
3 Ball Brass
4 Bonnet Brass
5 Stem Brass
6 O-ring NBR
7 Filler PTFE
8 Press cap Brass
9 Handle Steel
10 Nut Steel
11 Nozzle core Brass
12 Nozzle body Brass
13 O-ring NBR
14 Nozzle nob Brass
15 Gasket PTFE
16 Plug Brass

Bore sizes for brass ball valves:

SIZE L H DN D Weight Carton
1/2" 54 48 14A.8 85 232 64
3/4" 60 51.5 20 85 295 48
1" 72 62 25 114 505 32
11/4" 86.5 69.5 32 114 705 16
11/2" 97.5 79.5 40 140 978 12
2" 112.5 90.5 50 140 1600 8

Production flow of Brass Ball Valves :

Production Process

Brass material Chemical composition used for brass ball valves:

59534d14e21a7864798331 (1)

Available surface treatments of brass ball valves:

5701-2
Craft color

Packing of brass ball valves:

Pack and ship

Testing Lab for brass ball valves:

Testing Machine

Why choose SHANGYI as your China valves supplier:

1.rofessional valve manufacturer,with over 20 years of industry experiences.
2.Monthly production capacity of 1million sets,enables quick delivery
3.Testing each valve one by one
4.Intensive QC and on-time delivery,to make quality reliable and stable
5.Prompt responsive communications,from pre-sales to after-sales
