CHECK VALVES-S1003

Short Description:

Working pressure:2.5MPa

Working temperature: -20℃≤t≤110℃

Thread Confirmed to ISO228

Opening/closing test 10000times

Suitable for water services

Send email to us Download as PDF

Product Detail

Product Tags

Brass Spring Check Valve with Filter is made of forged brass, also called non-return valve, designed to control backflow of fluid control system, the fluid is directed by disc and flows in one direction, widely used for plumbing, pumping, and pipelines.

Product information :

Product name	CHECK VALVES
Sizes	1/4”-1/2",3/4”
Bore	Full bore
Application	Water, oil, and other non-corrosive liquid
Working pressure	PN16
Working temperature	-10 to 110°C
Working durability	10,000 cycles
Quality standard	EN13828, EN228-1/ ISO5208
End Connection	BSP
Features:	Heavy-duty design for higher pressure
	Anti-blow-out stem structure/O-Ring or Pressure Nut
	100% leakage test on valve before delivery
	Agents wanted and OEM acceptable
Packing	Inner boxes in cartons, loaded in pallets
Packing	Customized design acceptable

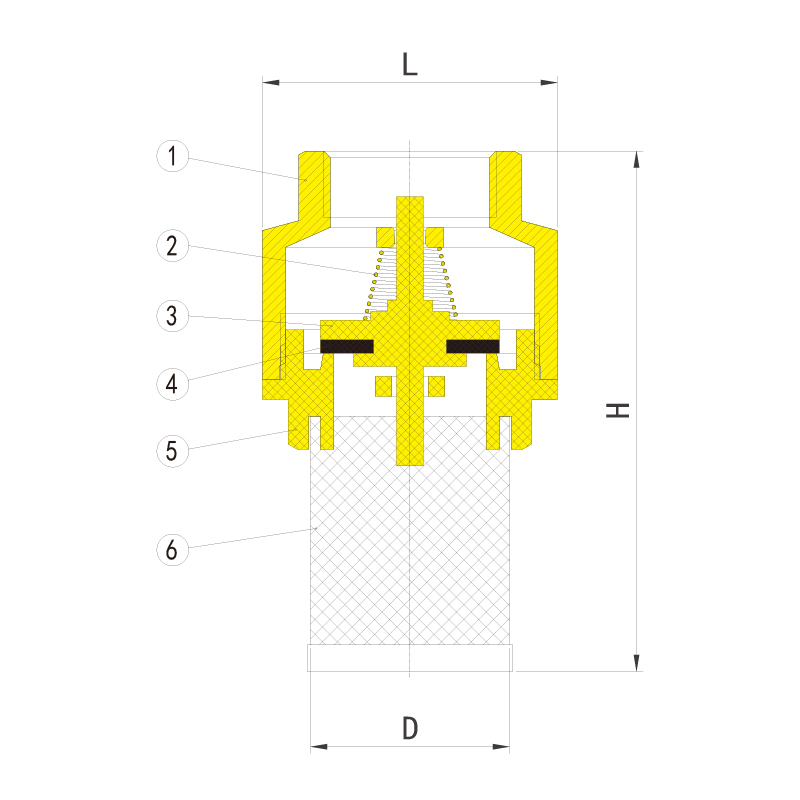

Spare Part for check valves:

NO	Component	Material
1	Body	Brass
2	Spring	Stainless
3	Disc	POM
4	Rubber gasket	NBR
5	Bonnet	Brass
6	Fillter	Stainess steel

Bore sizes for check valves:

SIZE	L	H	DN	Weight	Carton
1/2"	32.8	69.4	18	85	216
3/4"	41.7	77	22	125	108
1"	47.5	87	28	160	72
11/4"	57.5	100.3	37	220	36
11/2"	68	114	42	330	36
2"	80	131.4	55	500	12
21/2"	102.5	156.7	67	1020	6
3"	111	171.8	78	1350	6
4"	140.5	194.5	101.5	1850	4

Production flow of check valves :

Brass material Chemical composition used for check valves:

Available surface treatments of check valves:

Packing of check valves:

Testing Lab for check valves:

Why choose SHANGYI as your China valves supplier:

1.rofessional valve manufacturer,with over 20 years of industry experiences.
2.Monthly production capacity of 1million sets,enables quick delivery
3.Testing each valve one by one
4.Intensive QC and on-time delivery,to make quality reliable and stable
5.Prompt responsive communications,from pre-sales to after-sales
