CHECK VALVES-S1007

Short Description:

Working pressure:2.5MPa

Working temperature: -20℃≤t≤110℃

Thread Confirmed to ISO228

Opening/closing test 10000times

Suitable for water services


Product Detail

Product Tags

Brass Swing Check Valve is made of forged brass, also called non-return valve, designed to control backflow of fluid control system, the fluid is directed by movable disc and flows in one direction, widely used for plumbing, pumping, and pipelines.

Product information :

Product name CHECK VALVES
Sizes 1/4”-1/2",3/4”
Bore Full bore
Application Water, oil, and other non-corrosive liquid
Working pressure PN16
Working temperature -10 to 110°C
Working durability 10,000 cycles
Quality standard EN13828, EN228-1/ ISO5208
End Connection BSP
Features: Heavy-duty design for higher pressure
Anti-blow-out stem structure/O-Ring or Pressure Nut
100% leakage test on valve before delivery
Agents wanted and OEM  acceptable
Packing Inner boxes in cartons, loaded in pallets
Customized design acceptable

Spare Part for check valves:

NO Component Material
1 Body Brass
2 Rubber gasket NBR
3 Disc Brass
4 Bonnet Brass
5 Hinge pin Brass
6 Screw Brass

Bore sizes for check valves:

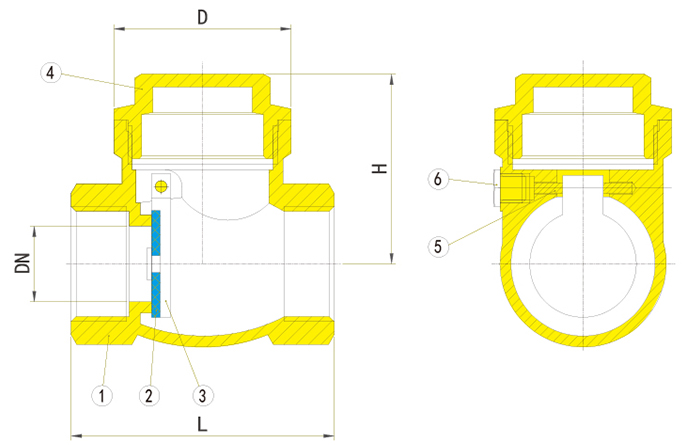

1007
SIZE L H DN Weight Carton
1/2" 47.1 34.8 13.7 160 192
3/4" 58 39.8 17.2 230 120
1" 63.1 48.5 21.7 350 72
11/4" 77 52 28 550 42
11/2" 80 60.5 33 780 36
2" 92.5 68.5 42.5 1150 18
21/2" 104 77.5 53 1850 6
3" 124 82.3 64 2600 4
4" 160 99.5 83 5000 2

Production flow of check valves :

Production Process

Brass material Chemical composition used for check valves:

59534d14e21a7864798331 (1)

Available surface treatments of check valves:

Craft color

Packing of check valves:

Pack and ship

Testing Lab for check valves:

Testing Machine

Why choose SHANGYI as your China valves supplier:

1.rofessional valve manufacturer,with over 20 years of industry experiences.
2.Monthly production capacity of 1million sets,enables quick delivery
3.Testing each valve one by one
4.Intensive QC and on-time delivery,to make quality reliable and stable
5.Prompt responsive communications,from pre-sales to after-sales
