CHECK VALVES-S1032

Short Description:

Working pressure:2.5MPa

Working temperature: -20℃≤t≤110℃

Thread Confirmed to ISO228

Opening/closing test 10000times

Suitable for water services


  • CHECK VALVES-S1032

Product Detail

Product Tags

Product information :

S1032-01
Product name CHECK VALVE
Sizes 1/4”-1/2",3/4”
Bore Full bore
Application Water, oil, and other non-corrosive liquid
Working pressure PN16
Working temperature -10 to 110°C
Working durability 10,000 cycles
Quality standard EN13828, EN228-1/ ISO5208
End Connection BSP
Features: Heavy-duty design for higher pressure
Anti-blow-out stem structure/O-Ring or Pressure Nut
100% leakage test on valve before delivery
Agents wanted and OEM  acceptable
Packing Inner boxes in cartons, loaded in pallets
Customized design acceptable

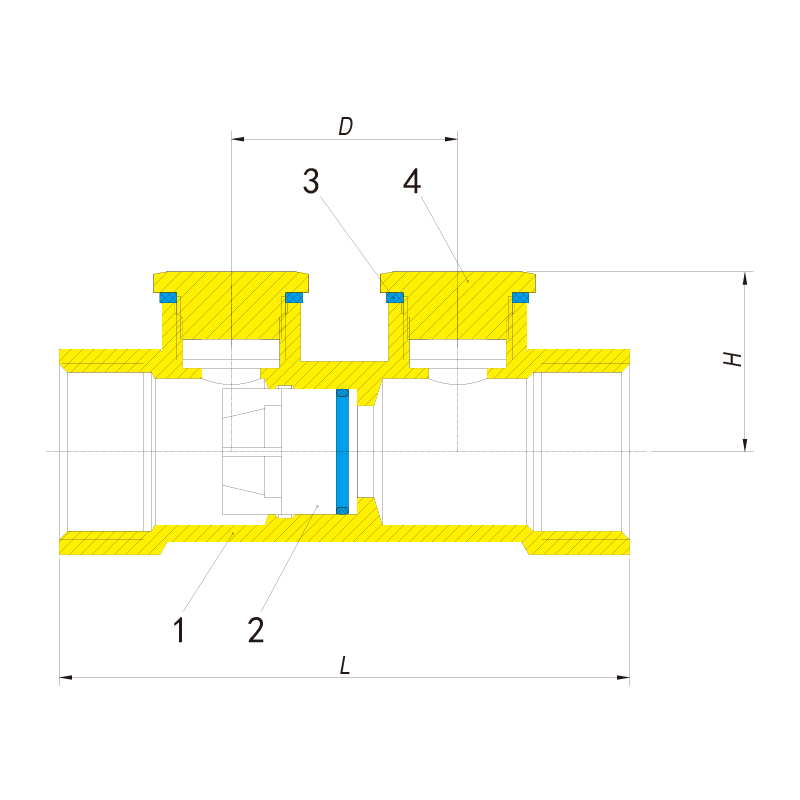

Spare Part for check valves:

NO Component Material
1 Body Brass
2 Reverse valve core ABS
3 Red paper pad Red steel paper
4 Plug Brass

Bore sizes for check valves:

SIZE L Weight Carton
1/2" 68 135 192
3/4" 72.5 168 144
1" 87 283 90
1 1/4" 113 470 /
1 1/2" 125 615 /
2" 155 680 /

Production flow of Brass Ball Valves :

Production Process

Brass material Chemical composition used for brass ball valves:

59534d14e21a7864798331 (1)

Available surface treatments of brass ball valves:

Craft color

Packing of brass ball valves:

Pack and ship

Testing Lab for brass ball valves:

Testing Machine

Why choose SHANGYI as your China valves supplier:

1.rofessional valve manufacturer,with over 20 years of industry experiences.
2.Monthly production capacity of 1million sets,enables quick delivery
3.Testing each valve one by one
4.Intensive QC and on-time delivery,to make quality reliable and stable
5.Prompt responsive communications,from pre-sales to after-sales

Key words: Brass Check valve
