DRAIN VALVE-S5701

Short Description:

Working pressure:2.5MPa

Working temperature: -20℃≤t≤110℃

Working Medium:Water

Thread Confirmed to ISO228

Send email to us Download as PDF

Product Detail

Product Tags

Product details:

Brass drain valve is a kind of spherical valve, which is made of brass material. This valve has a spherical valve body that rotates to control the flow of fluid.

It has the characteristics of corrosion resistance, high strength, heat resistance, etc., and is widely used in construction, municipal, water supply and drainage, metallurgy, chemical industry and other fields. In the sewage, water supply, water supply and other systems, the brass drain valve is an important pipeline control valve, which can effectively ensure the safe and stable operation of the pipeline.

Product information :

Product name	BRASS DRAIN VALVE
Sizes	1/2″-2″
Bore	Full bore
Application	Water and other non-corrosive liquid
Working pressure	PN10
Working temperature	-20 to 110°C
Quality standard	EN13828, EN228-1/ ISO5208
End Connection	BSP
Features:	Heavy-duty design for higher pressure
	Anti-blow-out stem structure/O-Ring or Pressure Nut
	100% leakage test on valve before delivery
	Agents wanted and OEM acceptable
Packing	Inner boxes in cartons, loaded in pallets
Packing	Customized design acceptable

Spare Part for brass ball valves:

NO	Component	Material
1	Body	Brass
2	Seat	PTFE
3	Ball	Brass
4	Bonnet	Brass
5	Stem	Brass
6	O-ring	NBR
7	Filler	PTFE
8	Press cap	Brass
9	Handle	Steel
10	Nut	Steel
11	Nozzle cao	Brass
12	Nozzle body	Brass
13	O-ring	NBR
14	Nozzle nob	Brass
15	Gasket	PTFE
16	Plug	Brass

Bore sizes for brass ball valves:

SIZE	L	H	DN	D	Weight	Carton
1/2″	54	48	14.8	85	232	64
3/4″	60	51.5	20	85	295	48
1″	72	62	25	114	505	32
11/4″	86.5	69.5	32	114	705	16
11/2″	97.5	79.5	40	140	978	12
2″	112.5	90.5	50	140	1600	8

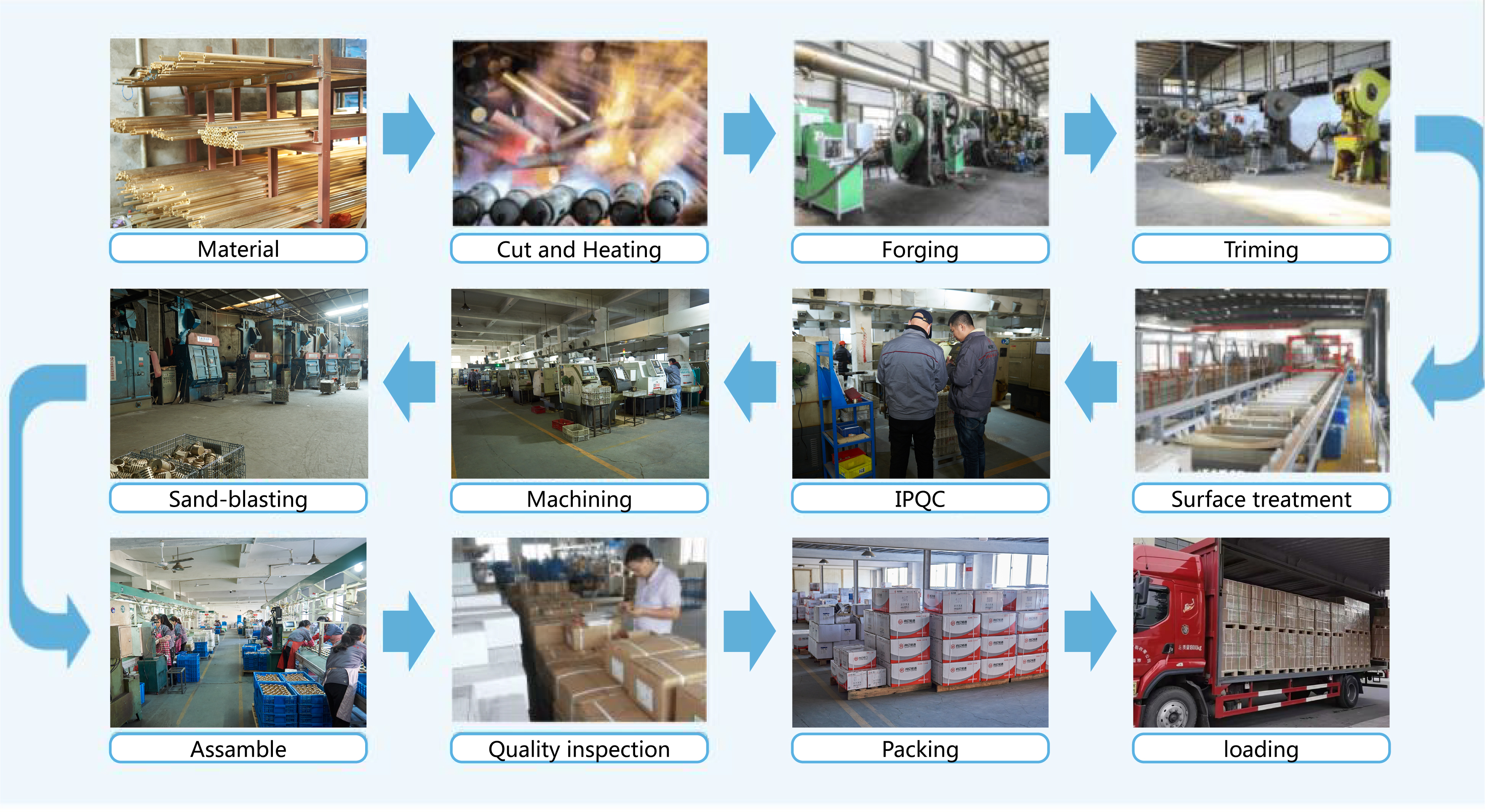

Production flow of Brass Ball Valves :

Brass material Chemical composition used for brass ball valves:

Available surface treatments of brass ball valves:

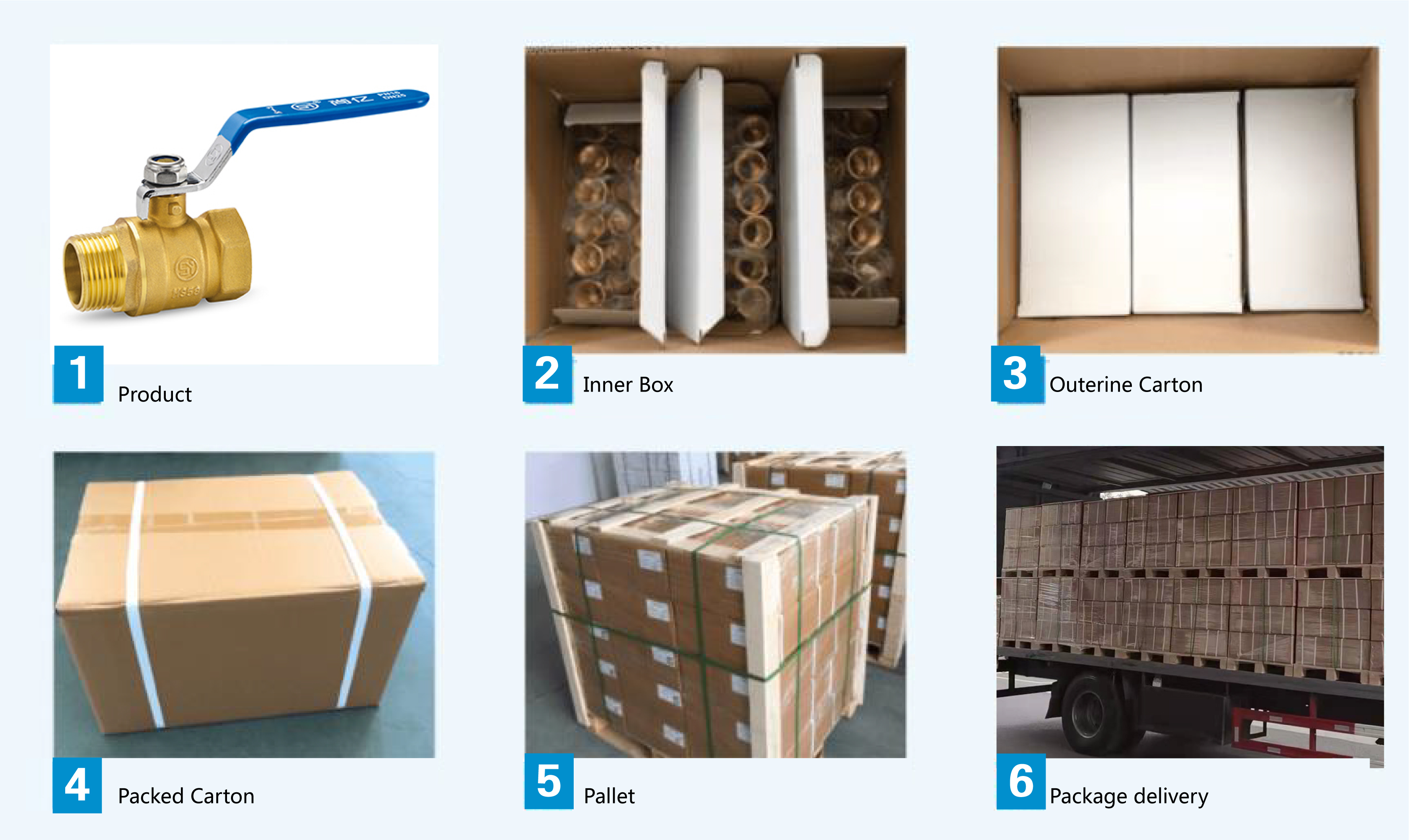

Packing of brass ball valves:

1. Standard exporting package—CARTON, PALLET
2. According to be packed as customer’s special requirements.

Deliverying of brass ball valves：

Delivery time: Within 35 days after order confirmed.

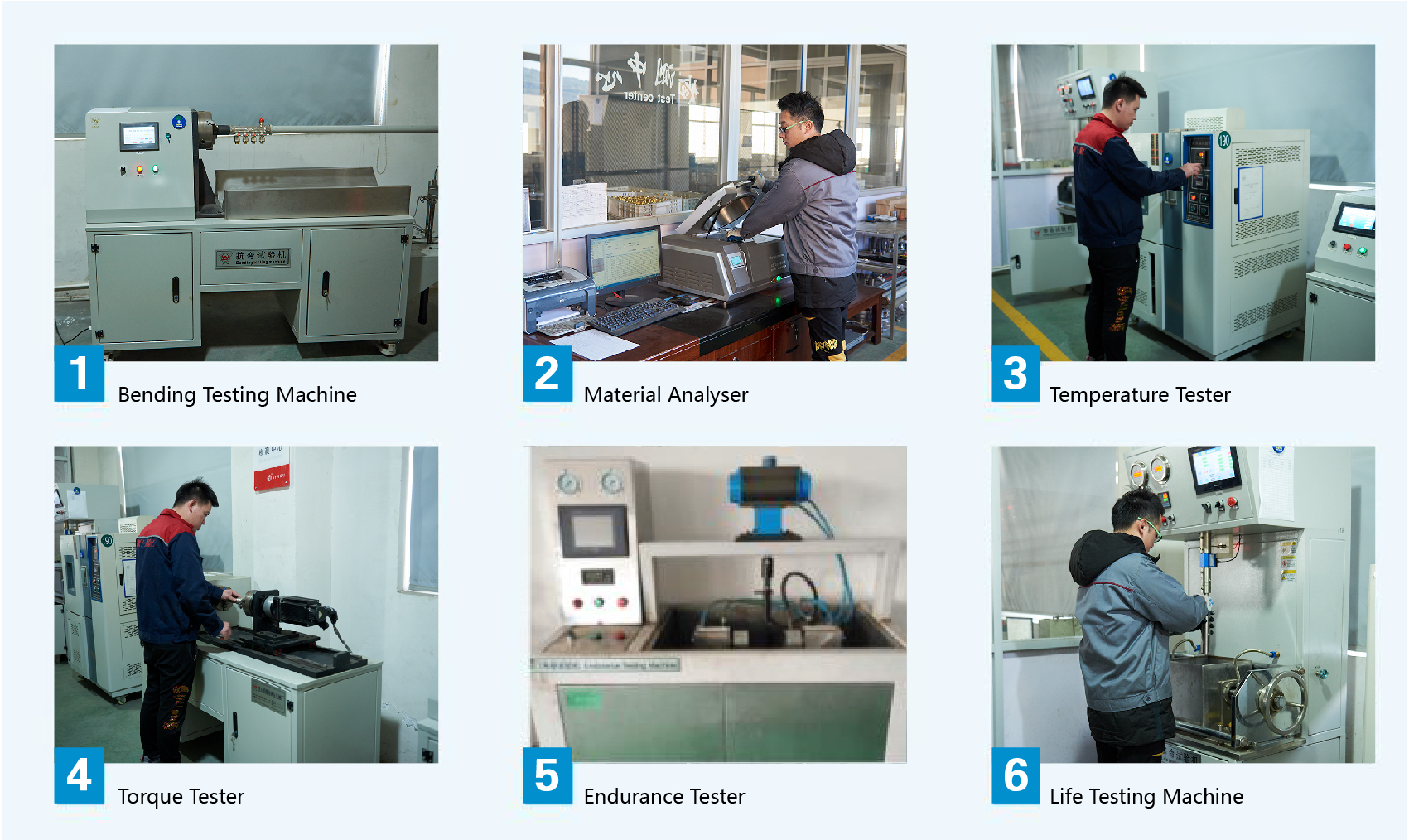

Testing Lab for brass ball valves:

Why choose SHANGYI as your Partner:

1.pofessional valve manufacturer,with over 20 years of industry experiences.

2.Monthly production capacity of 1million sets,enables quick delivery
3.Testing each valve one by one
4.Intensive QC and on-time delivery,to make quality reliable and stable
5.Prompt responsive communications,from pre-sales to after-sales

PRIMARY COMPETITIVE ADVATAGES

1. Experienced QC staffs check the quality by multiple tests on every production line.
2. We can product the brass ball valves according to our customer’s drawing and sample,

and If their order qualities are big, no need mould cost.

3. OEM/ODM is all welcome.
4. sample or trail order accepted.

If you are interested in our products, please don’t hesitate to contact us for more detailed information.

We sincerely look forward to establishing a credible long-term business relationship with your company

in the future
