FLITER-S2001

Short Description:

Working pressure:1.6MPa

Working temperature: -20℃≤t≤110℃

Suitable for water services


  • FLITER-S2001

Product Detail

Product Tags

Brass Strainer Valve is made of forged brass, also called brass filter valve, designed to filter the impurities in fluid control system, the fluid flows in one direction and filter by s/s filter screen of the valve, widely used for plumbing, pumping, and pipelines.

Product information :

Product name FILTER VALVES
Sizes 1"
Bore Full bore
Application Water and other non-corrosive liquid
Working pressure PN16
Working temperature -10 to 110°C
Quality standard EN13828, EN228-1/ ISO5208
End Connection BSP
Features 100% leakage test on valve before delivery
Agents wanted and OEM  acceptable
Packing Inner boxes in cartons, loaded in pallets
Customized design acceptable

Spare Part for filter

NO

Component

Material

1

Body

Brass

2

Fillter

Stainless steel

3

Gasket

PTFE

4

Plug

Brass

Bore sizes for filter

SIZE

L

H

DN

Weight

Carton

1/2"

56.5

40

14.8

140

192

3/4"

69

45

19

235

120

1"

77

50

20.5

335

72

11/4"

96.5

66

29.5

580

36

11/2"

105

75

34

800

24

2"

127

89

44

1350

12

21/2"

134

119

54

1950

10

3"

156.5

135

62

2950

6

4"

178

170

87

4800

4

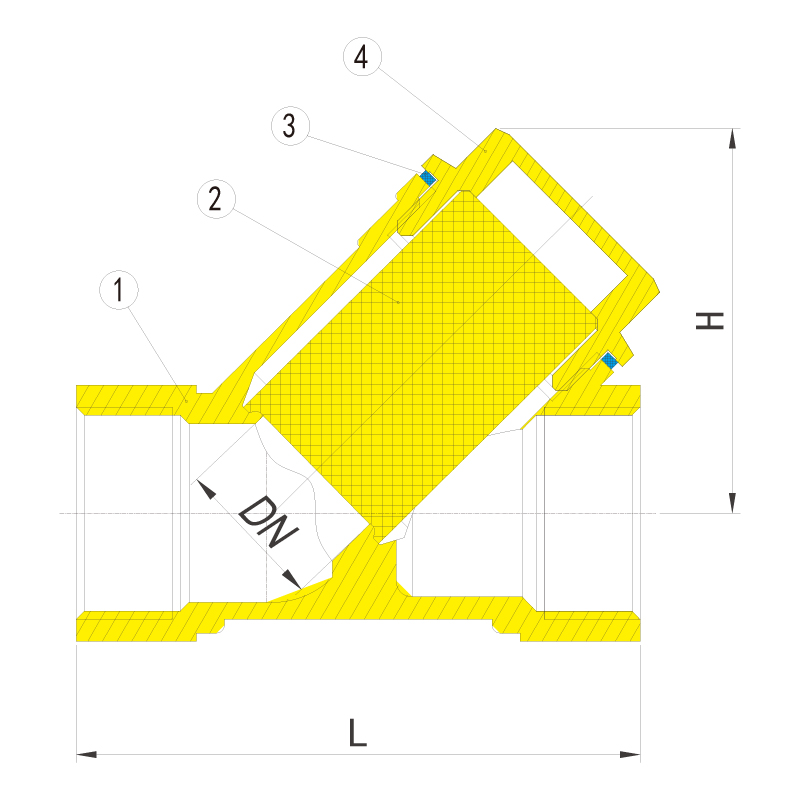

S2001-01

Production flow of filter Valves :

59534d14e21a7864798331 (1)

Brass material Chemical composition used for filter valves:

59534d14e21a7864798331 (1)

Available surface treatments of filter valves:

59534d14e21a7864798331 (1)

Packing of filter valves:

59534d14e21a7864798331 (1)

Testing Lab for filter valves:

59534d14e21a7864798331 (1)

Why choose SHANGYI as your China valves supplier:

1.rofessional valve manufacturer,with over 20 years of industry experiences.
2.Monthly production capacity of 1million sets,enables quick delivery
3.Testing each valve one by one
4.Intensive QC and on-time delivery,to make quality reliable and stable
5.Prompt responsive communications,from pre-sales to after-sales
