FOOT VALVE-S1008

Short Description:

Working pressure:1.6MPa

Working temperature: -20℃≤t≤110℃

Suitable for water services


  • FOOT VALVE-S1008

Product Detail

Product Tags

Brass Foot Valve is a kind of brass spring check valve with Filter, designed to control backflow of fluid control system, the fluid is directed by disc and flows in one direction, normally used in deep and dirty waters for pumping system.

Product information :

Product name FILTER VALVES
Sizes 1"
Bore Full bore
Application Water and other non-corrosive liquid
Working pressure PN16
Working temperature -10 to 110°C
Quality standard EN13828, EN228-1/ ISO5208
End Connection BSP
Features 100% leakage test on valve before delivery
Agents wanted and OEM  acceptable
Packing Inner boxes in cartons, loaded in pallets
Customized design acceptable

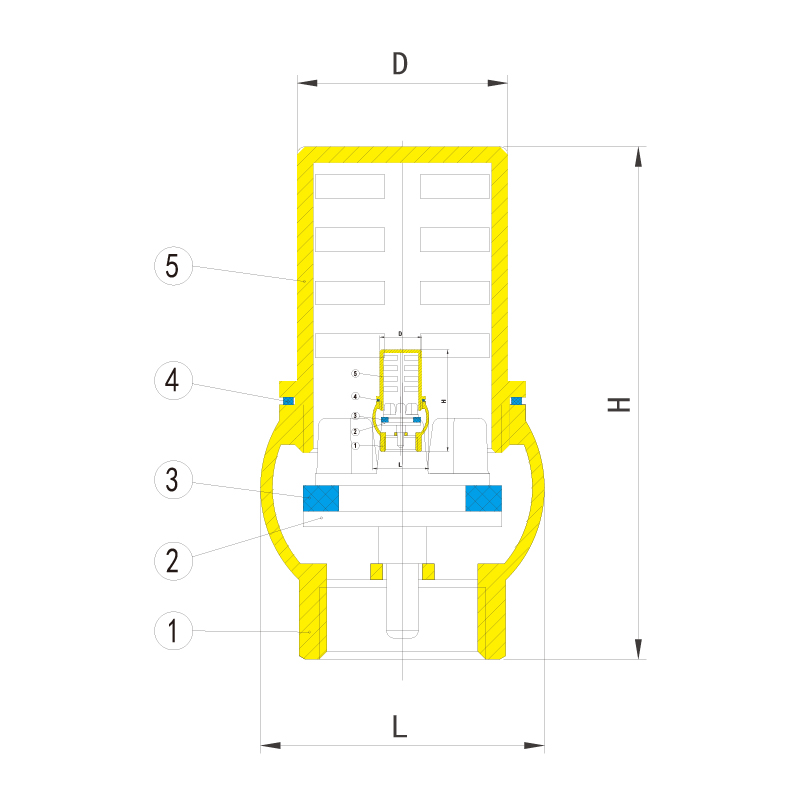

Spare Part for fool valve

NO

Component

Material

1

Body

Brass

2

Disc

Brass

3

Rubber gasket

NBR

4

Red paper pad

Red steel paper

5

Fillter

Brass

Bore sizes for fool valve

SIZE

L

H

Weight

Carton

1/2"

35.7

64.5

135

180

3/4"

42.1

75.5

210

108

1"

44

78

260

108

11/4"

56.6

96.5

400

48

11/2"

62.5

107

500

36

2"

78

119

780

18

21/2"

90

137

1200

14

3"

111

145.5

1650

8

4"

140

182

2800

3

Production flow of Brass Ball Valves :

Production Process
S1008-01

Brass material Chemical composition used for brass ball valves:

59534d14e21a7864798331 (1)

Available surface treatments of brass ball valves:

Craft color

Packing of brass ball valves:

Pack and ship

Testing Lab for brass ball valves:

Testing Machine

Why choose SHANGYI as your China valves supplier:

1.rofessional valve manufacturer,with over 20 years of industry experiences.
2.Monthly production capacity of 1million sets,enables quick delivery
3.Testing each valve one by one
4.Intensive QC and on-time delivery,to make quality reliable and stable
5.Prompt responsive communications,from pre-sales to after-sales
