MINI VALVES-S5093

Short Description:

Working pressure:1.6MPa

Working temperature: -20℃≤t≤110℃

Thread Confirmed to ISO228

Opening/closing test 20000times

Working Medium:Water


Product Detail

Product Tags

Product information :

Product name MINI VALVES
Sizes 1/4"-3/4"
Bore Full bore
Application Water and other non-corrosive liquid
Working pressure PN16
Working temperature -10 to 110°C
Working durability 20,000 cycles
Quality standard EN13828, EN228-1/ ISO5208
End Connection BSP
Features: Heavy-duty design for higher pressure
Anti-blow-out stem structure/O-Ring or Pressure Nut
100% leakage test on valve before delivery
Agents wanted and OEM  acceptable
Packing Inner boxes in cartons, loaded in pallets
Customized design acceptable

Spare Part for mini valves:

NO Component Material
1 Body Brass
2 Seat PTFE
3 Ball Brass
4 Bonnet Brass
5 Stem Brass
6 O-ring NBR
7 Butterfly handle Aluminium
8 Nut Stainless steel

Bore sizes for mini valves:

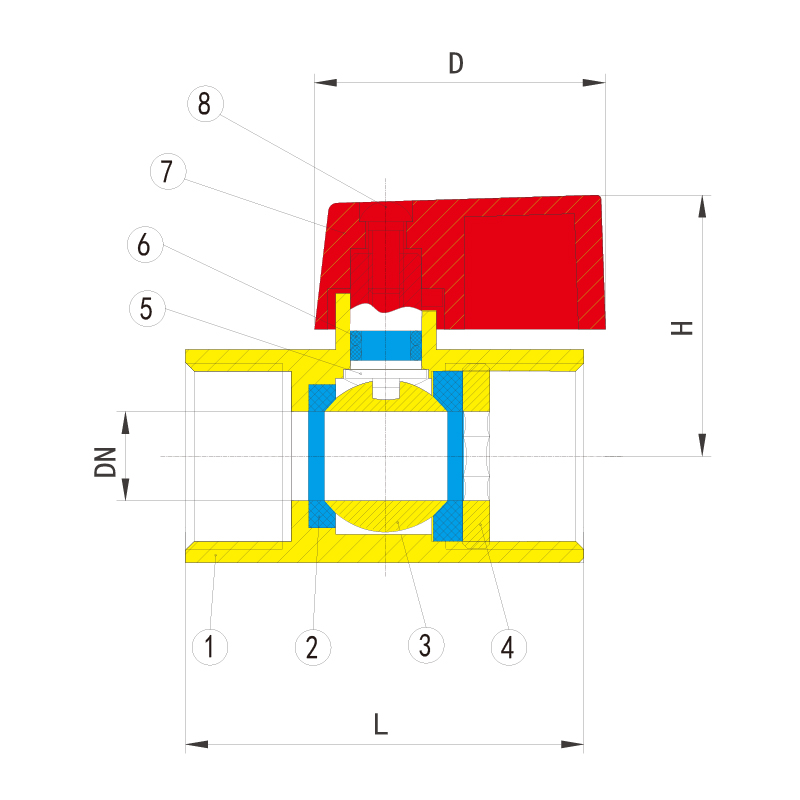

S5093-01
SIZE L H DN D Weight Carton
1/4"x1/4" 40 28 8 32.5 88 288
3/8"x3/8" 40 28 8 32.5 80 288
1/2"x1/2" 45.5 29 10 32.5 105 288

Production flow of mini valves :

Production Process

Brass material Chemical composition used for mini valves:

59534d14e21a7864798331 (1)

Available surface treatments of mini valves:

Craft color

Packing of mini valves:

Pack and ship

Testing Lab for mini valves:

Testing Machine

Why choose SHANGYI as your China valves supplier:

1.rofessional valve manufacturer,with over 20 years of industry experiences.
2.Monthly production capacity of 1million sets,enables quick delivery
3.Testing each valve one by one
4.Intensive QC and on-time delivery,to make quality reliable and stable
5.Prompt responsive communications,from pre-sales to after-sales

Key words: Brass Ball Valves, Forged Brass Ball Valves, Nickel-plated Brass Ball Valves, Brass Valves, Ball Valves, Valves
