s3044 Radiator Valve

Short Description:

Working pressure:1.0MPa

Working temperature: -20℃≤t≤110℃

Working Medium:Water, Non-corrosive liquid, Saturated steam

Thread confirmed to ISO228


Product Detail

Product Tags

Product information :

Product name Brass Ball Valve
Sizes 1/2"~2"
Bore Full bore
Application Water, oil, and other non-corrosive liquid
Working pressure PN30 / 500Psi
Working temperature -10 to 110°C
Working durability 10,000 cycles
Quality standard EN13828, EN228-1
End Connection BSP, NPT
Features: Heavy-duty design for higher pressure
Anti-blow-out stem structure
100% leakage test for each valve
OEM production acceptable
Materials Spare Part Material
 Body Forged brass, sandblasted and nickel-plated
Bonnet Forged brass, sandblasted and nickel-plated
Ball Forged brass, polished and chrome-plated
Handle Steel chromed with plastic cover
Nut Steel
Stem Brass
Ball seat  PTFE
Packing Inner boxes in cartons, loaded in pallets
Customized design acceptable

Bore sizes for check valves:

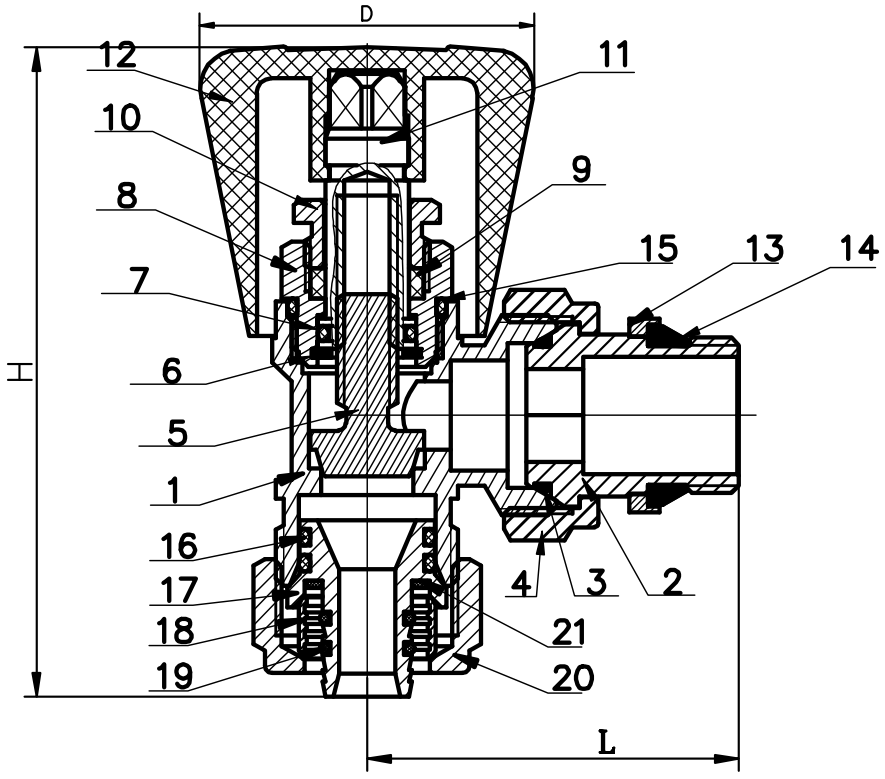

S3044
NO Component Material
1 Body Brass
2 Union Brass
3 O-ring EPDM
4 Lock cap  Brass
5 Plug Brass
6 Clamp ring  Stainless  Steel
7 O-ring EPDM
8 Lock cap  Brass
9 Packing  PTFE
10 Press cap Brass
11 Stem Brass
12 Handle wheel ABS
13 Clamp ring  Brass
14 Gasket EPDM
15 O-ring EPDM
16 O-ring EPDM
17 Union Brass
18 Clamp Brass
19 O-ring EPDM
20 Lock cap  Brass
21 Gasket ABS
SIZE L H D Weight
1/2" 50 84 45 267

Production flow of Brass Ball Valves :

59534d14e21a7864798331 (1)

Brass material Chemical composition used for brass ball valves:

59534d14e21a7864798331 (1)

Bore sizes for brass ball valves:

59534d14e21a7864798331 (1)

Available surface treatments of brass ball valves:

59534d14e21a7864798331 (1)

Packing of brass ball valves:

59534d14e21a7864798331 (1)

Testing Lab for brass ball valves:

59534d14e21a7864798331 (1)

Why choose SHANGYI as your china valves supplier:

1.rofessional valve manufacturer,with over 20 years of industry experiences.
2.Monthly production capacity of 1million sets,enables quick delivery
3.Testing each valve one by one
4.Intensive QC and on-time delivery,to make quality reliable and stable
5.Prompt responsive communications,from pre-sales to after-sales
