BIBCOCK VALVES-S6021

Short Description:

Working pressure:1.6MPa

Working temperature: -20℃≤t≤110℃

Working Medium:Water

Product Detail

Product Tags

Key words: Brass Ball Valves, Forged Brass Ball Valves, Nickel-plated Brass Ball Valves, Brass Valves, Ball Valves, Valves

Product information :

Product name	ANGLE VALVE
Sizes	1/2",3/4”
Bore	Full bore
Application	Water and other non-corrosive liquid
Working pressure	PN16
Working temperature	-10 to 110°C
Quality standard	EN13828, EN228-1/ ISO5208
End Connection	BSP
Features:	Heavy-duty design for higher pressure
	Anti-blow-out stem structure/O-Ring or Pressure Nut
	100% leakage test on valve before delivery
	Agents wanted and OEM acceptable
Packing	Inner boxes in cartons, loaded in pallets
Packing	Customized design acceptable

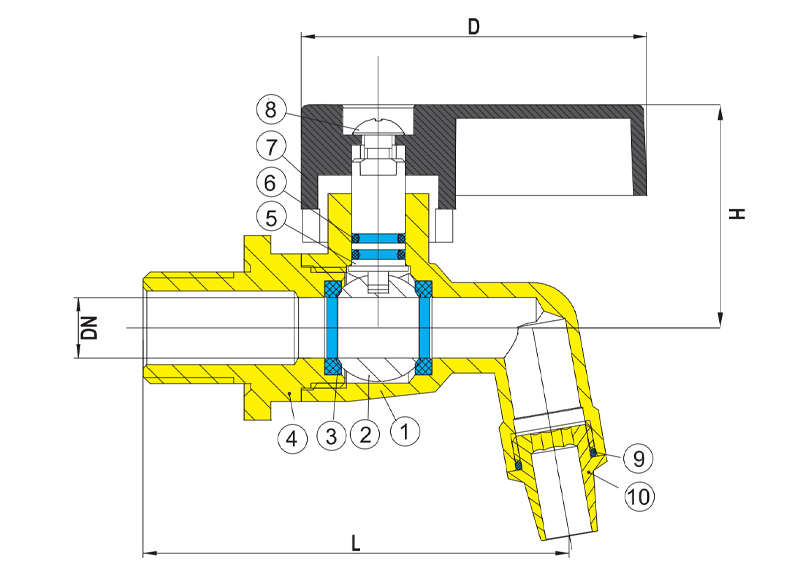

Specifications

NO	Component	Material
1	Body	Brass
2	Ball	Brass
3	Seat	PTFE
4	Nozzle	Brass
5	Stem	Brass
6	O-ring	EDPM
7	Handle	AL
8	Screw	Stainless Steel
9	O-ring	NBR
10	Decorative bead	Brass

Bore sizes for angle valves:

SIZE	L	H	DN	D	Weight	Carton
3/8"	70.2	33.2	9	57	142	160
1/2"	75.7	33.2	10	50	155	100
3/4"	75.7	37.8	10	50	225	100

Production flow of angle valves :

Brass material Chemical composition used for angle valves:

Available surface treatments of angle valves:

Packing of angle valves:

Testing Lab for angle valves:
