| Product name |
BALL VALVES |
| Sizes |
2"1"1/2"3/4" |
| Bore |
Full bore |
| Application |
Water and other non-corrosive liquid |
| Working pressure |
PN30 |
| Working temperature |
-10 to 110°C |
| Quality standard |
EN13828, EN228-1/ ISO5208 |
| End Connection |
BSP |
| Features: |
Heavy-duty design for higher pressure |
| Anti-blow-out stem structure/O-Ring or Pressure Nut |
| 100% leakage test on valve before delivery |
| Agents wanted and OEM acceptable |
| Packing |
Inner boxes in cartons, loaded in pallets |
| Customized design acceptable |

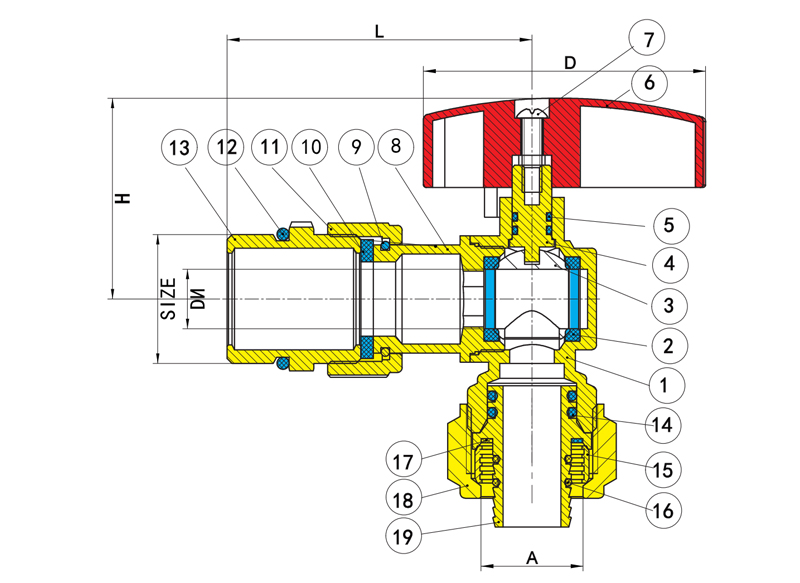

Bore sizes for brass ball valves:
| NO |
Component |
Material |
| 1 |
Body |
Brass |
| 2 |
Seat |
PTFE |
| 3 |
Ball |
Brass |
| 4 |
Stem |
Brass |
| 5 |
O-ring |
EPDM |
| 6 |
Handle |
AL |
| 7 |
Screw |
Steel |
| 8 |
Bonnet |
Brass |
| 9 |
Circlip |
S304 |
| 10 |
Gasket |
PTFE |
| 11 |
Lock cap |
Brass |
| 12 |
O-ring |
EPDM |
| 13 |
Connector |
Brass |
| 14 |
O-ring |
EPDM |
| 15 |
Circlip |
Brass |
| 16 |
O-ring |
EPDM |
| 17 |
Gasket |
ABS |
| 18 |
Lock cap |
Brass |
| 19 |
Adapter |
Brass |
Bore sizes for brass ball valves:
| SIZE |
A |
L |
H |
DN |
D |
Weight |
Carton |
| 1/2" |
1216 |
58.5 |
40.5 |
12 |
56 |
221 |
72 |
| 3/4" |
1216 |
61.5 |
40.5 |
12 |
56 |
284 |
54 |
| 3/4" |
1620 |
61.5 |
40.5 |
12 |
56 |
284 |
54 |
| 1" |
2026 |
74 |
52.5 |
15 |
56 |
462 |
54 |
Production flow of Brass Ball Valves :
Brass material Chemical composition used for brass ball valves:
Available surface treatments of brass ball valves:
Packing of brass ball valves:
Testing Lab for brass ball valves:
Why choose SHANGYI as your China valves supplier:
1.rofessional valve manufacturer,with over 20 years of industry experiences.
2.Monthly production capacity of 1million sets,enables quick delivery
3.Testing each valve one by one
4.Intensive QC and on-time delivery,to make quality reliable and stable
5.Prompt responsive communications,from pre-sales to after-sales
