BIBCOCK-S5027

Short Description:

Working pressure:1.6MPa

Working temperature: -20℃≤t≤110℃

Thread Confirmed to ISO228

Opening/closing test 20000times

Working Medium:Water

Send email to us Download as PDF

Product Detail

Product Tags

Brass Bibcock is a kind of brass ball valve, made of forged brass and operated with handle, also named brass garden taps, widely used for plumbing, heating, and pipelines.

Product information :

Product name	BALL VALVES
Sizes	1/4”-1/2",3/4”
Bore	Full bore
Application	Water, oil, and other non-corrosive liquid
Working pressure	PN16
Working temperature	-10 to 110°C
Working durability	10,000 cycles
Quality standard	EN13828, EN228-1/ ISO5208
End Connection	BSP
Features:	Heavy-duty design for higher pressure
	Anti-blow-out stem structure/O-Ring or Pressure Nut
	100% leakage test on valve before delivery
	Agents wanted and OEM acceptable
Packing	Inner boxes in cartons, loaded in pallets
Packing	Customized design acceptable

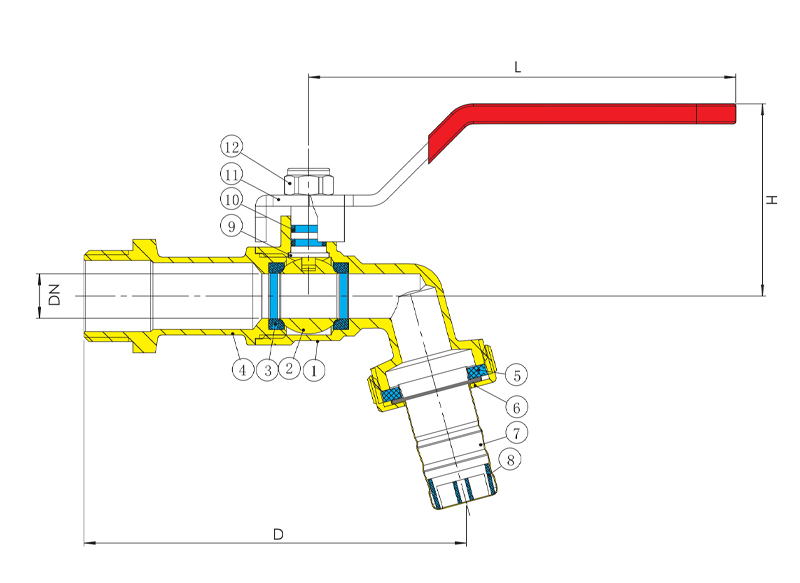

Spare Part for bibcock:

NO	Component	Material
1	Body	Brass
2	Seat	PTFE
3	Ball	Brass
4	Bonnet	Brass
5	Stem	Brass
6	O-ring	NBR
7	Handle	Steel
8	Nut	Steel

Bore sizes for bibcock:

SIZE	L	H	DN	D	Weight	Carton
1/2"x3/4"	92	45	10	99	190	84
3/4"x1"	99	47	11.8	99	275	48
1"x11/4"	116.5	60.5	14.8	122	430	30

Production flow of Brass Ball Valves :

Brass material Chemical composition used for brass ball valves:

Available surface treatments of brass ball valves:

Packing of brass ball valves:

Testing Lab for brass ball valves:

Why choose SHANGYI as your China valves supplier:

1.rofessional valve manufacturer,with over 20 years of industry experiences.
2.Monthly production capacity of 1million sets,enables quick delivery
3.Testing each valve one by one
4.Intensive QC and on-time delivery,to make quality reliable and stable
5.Prompt responsive communications,from pre-sales to after-sales
