BALL VALVES-S5019

Short Description:

Working pressure:1.6MPa

Working temperature: -20℃≤t≤110℃

Working Medium:Water

Product Detail

Product Tags

Key words: Brass Ball Valves, Forged Brass Ball Valves, Nickel-plated Brass Ball Valves, Brass Valves, Ball Valves, Valves

Product information :

Product name	BALL VALVES
Sizes	1"1/2"3/4"
Bore	Full bore
Application	Water and other non-corrosive liquid
Working pressure	PN16
Working temperature	-10 to 110°C
Quality standard	EN13828, EN228-1/ ISO5208
End Connection	BSP
Features:	Heavy-duty design for higher pressure
	Anti-blow-out stem structure/O-Ring or Pressure Nut
	100% leakage test on valve before delivery
	Agents wanted and OEM acceptable
Packing	Inner boxes in cartons, loaded in pallets
Packing	Customized design acceptable

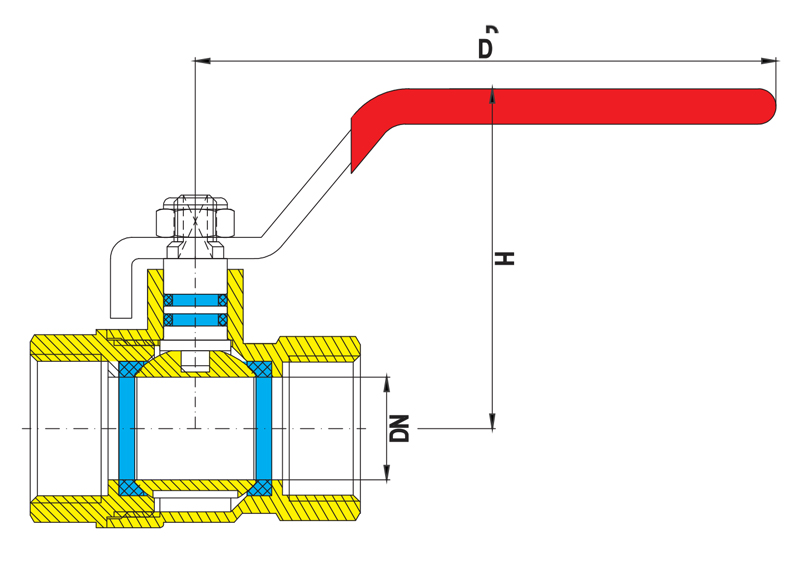

Bore sizes for brass ball valves:

SIZE	L	H	DN	D	Weight	Carton
1/2"	42	44	10	82	135	120
3/8"	42	44	10	82	124	120
1/2"	46.6	48	14.5	82	153	108
3/4"	57	53	19	99	256	84
1"	66	64	24	122	417	60
11/4"	77	72	30	122	557	36
11/2"	86.5	76	37	144	817	24
2"	100	88	47	144	1290	12

Production flow of Brass Ball Valves :

Brass material Chemical composition used for brass ball valves:

Available surface treatments of brass ball valves:

Packing of brass ball valves:

Testing Lab for brass ball valves:

Why choose SHANGYI as your China valves supplier:

1.rofessional valve manufacturer,with over 20 years of industry experiences.
2.Monthly production capacity of 1million sets,enables quick delivery
3.Testing each valve one by one
4.Intensive QC and on-time delivery,to make quality reliable and stable
5.Prompt responsive communications,from pre-sales to after-sales
